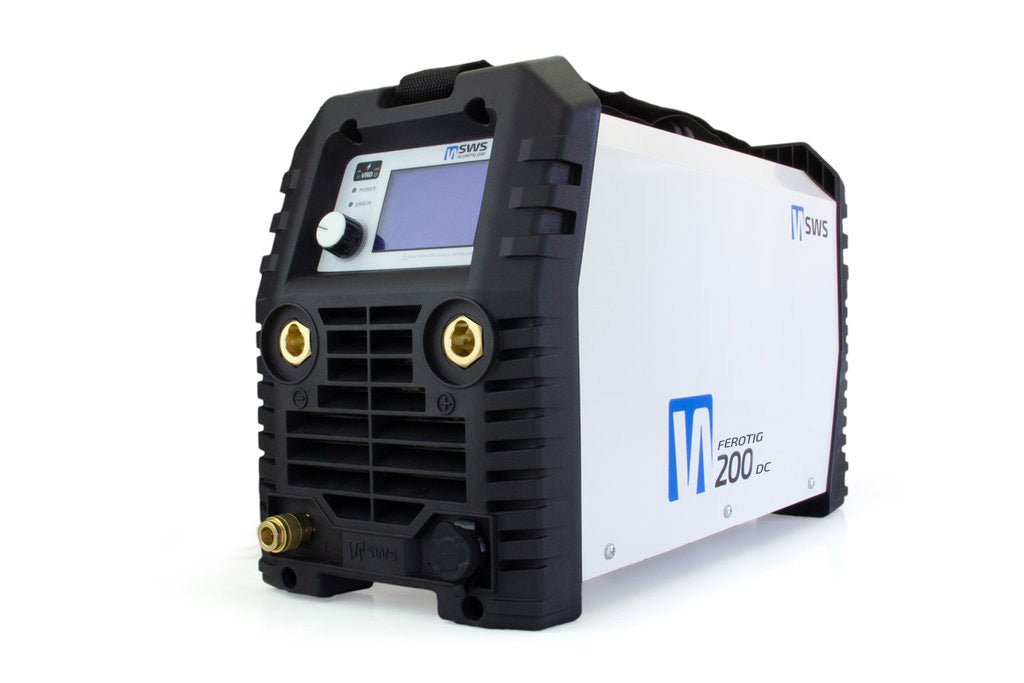

FEROTIG 200 DC TIG MMA Welder
FEROTIG 200 DC TIG MMA Welder
Couldn't load pickup availability
The SWS FEROTIG™ 200 is a portable welding machine ideal for steel and specialty metals like titanium and chromoly. It has digital controls and quality accessories, making it a good choice for professional fabricators and hobby welders. This machine excels in DC TIG and stick welding, providing reliability and precision for various welding tasks.
JOB SITE READY
The Ultimate On-Site TIG
Built tough with Infineon’s IGBT technology, this machine is one of the lightest in its class — just 8kg Its compact, durable design makes it incredibly portable and perfect for site work.
LATEST IN HF TECH
Reliable Arc Starts
Latest in HF arc starting technology means no maintenance needed and reliable arc starts with a 98% success rate.
SPECIFICATIONS
| Processes | HF TIG DC (GTAW-DC), LIFT TIG DC (GTAW-DC), Pulsed TIG (GTAW-P), Stick DC (MMA) |
| Current Type | DC |
| Weldable Metals | Mild Steel (DC), Stainless Steel (DC), Specialty Metals |
| Industries | Steel and Stainless Steel Fabrication, Stainless Steel Tank and Pipe Fabrication, Boat Building / Shipyards, Motorcycle Custom Shops, Automotive Custom Shops, Automotive Components and Repairs, Motorcycle Components and Repairs, Technical Schools, Aerospace, Agriculture, Farming, Building and Construction, Home Repair Workshops |
| Input Voltage | 1 Phase 230V +/- 15% (15 Amp Plug) |
| Input Hz | 50/60 Hz |
| Min Generator | 6.6kW (8.5kVA at 0.8 PF) |
| Duty Cycle (TIG - MMA) 25°C Amb | 40% @ 200A, 100% @ 140A |
| Welding Current Range | 10-200 Amps |
| Arc Ignition | HF, Lift TIG |
| Tack Time | 0.1-10s |
| Parameters TIG | Pre-Flow 0.5-10s, Post-Flow 0-20s / Start-Amps 10-200A, End-Amps 10-200A / Upslope 0-10s, Downslope 0-10s |
| Pulse Peak Amps | 10-200 Amps |
| Pulse Time On | 10-90% |
| Pulse Frequency | 0.1-500 Hz |
| Pulse Base Amps (TIG) | 20-50% |
| Hot Start (MMA) | 0-60 Amps |
| Arc Force (MMA) | 0-99% |
| Dimensions | L 435mm x H 265mm x W 180mm |
| Weight | 8 Kg |
| Warranty | 3 Years Standard, 5 Years Extended |
| Standards | Complies with EN/IEC 60974-1. For industrial use only. |
| Country of Manufacture | Made in China |
INCLUDED ACCESSORIES
- 8 Meter 17 Series TIG flex head torch with amp control and single switch control
- Argon Regulator & Hose
- 4 Meter ground clamp
- Spares Kit
